Baseline Demographics, Safety, and Patient Acceptance of an Insertable Cardiac Monitor for Atrial Fibrillation Screening: The REVEAL-AF Study

Sergio Conti1, James A Reiffel2, Bernard J Gersh3, Peter R Kowey4, Rolf Wachter5, Jonathan L Halperin6, Rachelle E Kaplon7, Erika Pouliot7, Atul Verma1

1Department of Cardiology, Southlake Regional Health Centre, Newmarket, Ontario, Canada.2Department of Medicine, Division of Cardiology, Columbia University, New York, New York, USA.3Division of Cardiovascular Diseases, Mayo Clinic, Rochester, Minnesota, USA.4Department of Internal Medicine-Cardiology, Lankenau Institute for Medical Research, Wynnewood, Pennsylvania, USA.5Department of Cardiology and Pneumology, University of Göttingen, Göttingen, Germany; German Cardiovascular Research Center (DZHK), Göttingen, Germany.6Department of Medicine-Cardiology. Cardiovascular Institute, Mount Sinai Medical Center, New York, New York, USA.7Diagnostics, Cardiac Rhythm and Heart Failure, Medtronic, Inc. Mounds View, Minnesota, USA.

Abstract

Given the high prevalence and risk of stroke associated with atrial fibrillation (AF), detection strategies have important public health implications. The ongoing prospective, single-arm, open-label, multicenter REVEAL AF trial is evaluating the incidence of previously undetected AF using an insertable cardiac monitor (ICM) in patients without prior AF or device implantation, but who could be at risk for AF due to their demographic characteristics, +/- non-specific but compatible symptoms. Enrollment required an elevated AF risk profile defined as CHADS2≥3 or CHADS2=2 plus one or more of the following: coronary artery disease, renal impairment, sleep apnea or chronic obstructive pulmonary disease. Exclusions included stroke or transient ischemic attack occurring in the previous year. Of 450 subjects screened, 399 underwent a device insertion attempt, and 395 were included in the final analysis (Reveal XT: n=122; Reveal LINQ: n=273; excluded: n=4). Participants were primarily identified by demographic characteristics and the presence of nonspecific symptoms, but without prior documentation of “overt” AF. The most common symptoms were palpitations (51%), dizziness/lightheadedness/pre-syncope (36%), and shortness of breath (36%). Over 100 subjects were enrolled in each pre-defined CHADS2 subgroup (2, 3 and ≥4). AF risk factors not included in the CHADS2 score were well represented (prevalence≥15%). Procedure and/or device related serious adverse events were low, with the miniaturized Reveal LINQ ICM having a more favorable safety profile than the predicate Reveal XT (all: n=13 [3.3%]; LINQ: n=6 [2.2%]; XT: n=7 [5.7%]). These data demonstrate that REVEAL AF was successful in enrolling its target population, high risk patients were willing to undergo ICM monitoring for AF screening, and ICM use in this group is becoming increasingly safe with advancements in technology. A clinically meaningful incidence of device detected AF in this study will inform clinical decisions regarding ICM use for AF screening in patients at risk.

Key Words : Atrial fibrillation, screening, insertable cardiac monitor.

Correspondence to: Atul Verma; atul.verma@utoronto.ca; phone: 9059537917; fax: 9059530046

Introduction

Atrial fibrillation (AF) is the most common sustained cardiac arrhythmia and is a leading cause of morbidity and mortality. Approximately 33.5 million patients worldwide in 2010 had been diagnosed with AF and the figure is projected to double by mid-century.[1]-[5] This increasing burden of AF will likely lead to a higher incidence of stroke, systemic embolism, heart failure, and death: known sequelae of this arrhythmia.

The true burden of AF may be even higher than currently estimated. Although some patients are aware of their AF episodes, up to two-thirds of patients are asymptomatic, having so-called “silent AF.” [6], [7] Importantly, silent AF carries the same risks as symptomatic AF.[8] Indeed, monitoring studies with previously implanted cardiac devices have demonstrated an association between asymptomatic AF episodes of brief duration and increased risk of stroke/systemic embolism in such patients.[9]-[13] Of concern, AF may only be diagnosed after complications like ischemic stroke have occurred.[14], [15] Given the high prevalence and risk associated with AF, there is considerable interest in: the development of screening strategies to detect AF and hopefully modify morbidity and mortality by early institution of preventive therapies, such as oral anticoagulation (OAC); to do so in patients with or without underlying electrical disorders necessitating pacemaker or defibrillator implantation; and to understand if the consequences of “silent AF” are as significant in patients without underlying device-requiring disorders as in those with them. The key issues related to AF screening, as with screening for any disease, are: 1) who to screen and 2) how to screen to optimize treatment and cost-effectiveness.

To be useful and cost-effective, a screening strategy needs to balance the correct detection tool with the targeted at-risk population. Common devices used to screen for atrial fibrillation range from non-invasive devices using smartphone, hand-held, and wearable platforms employing external ECG, and/or pulse detection to provide snapshot screening, to insertable cardiac monitors (ICMs; subcutaneous ECG recorders) that provide continuous long-term monitoring for up to three years.[16]-[19] In a lower risk population, a simpler, less invasive, and cheaper test may be sufficient. In a higher risk population that is a) more likely to develop AF and b) at higher risk of morbidity/mortality secondary to the disease, a minimally invasive tool with a better detection rate yet potentially higher cost might be justified. However, the patient acceptance, safety and efficacy of such a strategy are unknown.

The REVEAL AF study (NCT01727297) is designed to evaluate the incidence of AF using an ICM device in patients with elevated risk profiles.[20] Although follow up for the primary endpoint is ongoing, enrollment is complete and all patients have undergone their baseline visit and device insertion. In this manuscript, we report selected baseline demographic data, patient acceptance of the REVEAL AF ICM monitoring strategy, and procedure and safety details of ICM insertion. During the course of the trial, a new miniaturized ICM became commercially available and was implemented in the study. As such, REVEAL AF provides a unique opportunity to characterize the safety profile of evolving ICM technology within a patient population suspected to be at high risk for AF.

Materials and Methods

The REVEAL AF trial design has been described in detail previously.[20] Briefly, REVEAL AF (NCT01727297) is an ongoing prospective, single-arm, open-label, multicenter, clinical study that enrolled patients in 58 centers in the United States and Europe between November 2012 and June 2015. Four hundred and fifty adults suspected to have or be at risk of AF (due to demographics and/or symptoms) with elevated AF risk profiles based on CHADS2 score plus additional markers were enrolled in the study. Elevated risk for AF per CHADS2 was defined as a score ≥ 3 or a CHADS2 score = 2 with at least one of the following additional risk factors documented: coronary artery disease, renal impairment, sleep apnea, or chronic obstructive pulmonary disease. Patients were excluded if they had an ischemic stroke or a transient ischemic attack in the previous 12 months, or a history of hemorrhagic stroke. All consented patients were required to have a minimum of 24 hours of external ECG assessment (using Holter monitoring or other techniques) within the previous 90 days prior to enrollment or before device insertion. Patients were excluded from the trial if AF was diagnosed by external monitoring. Baseline demographics, medical history, blood samples for biomarker analysis (as possible predictors), echocardiogram, and a quality of life questionnaire were collected. This study was conducted in accordance with the Declaration of Helsinki. The protocol was approved by each site’s institutional Review Board or Ethics Committee and all patients provided written informed consent prior to participating in the study.

The ICM (Reveal XT or Reveal LINQ, Medtronic, plc, Dublin, Ireland) procedure occurred within 6 weeks of study enrollment and was performed in accordance with each hospital’s standard insertion practice and the Medtronic Reveal ICM insertion instructions. The Medtronic REVEAL ICM insertion instructions for the Reveal XT device require a single-incision procedure with normal aseptic techniques. A small subcutaneous pocket slightly smaller than the width of the device is created, the device is inserted into the pocket with electrodes facing outward, and secured to underlying tissue using the suture holes on the device header. For the LINQ device, the Medtronic REVEAL ICM insertion instructions require use of conventional antiseptic and local anesthetic procedures. The skin adjacent to the incision location is pinched, and the incision tool provided with the device is used to make a less than 1 cm incision. The insertion tool preloaded with the LINQ device is then inserted and rotated 180 degrees to create a pocket approximately 8 mm under the skin. The plunger on the insertion tool is pushed to deliver the device into the pocket approximately 10mm past the incision. Details on device insertion were collected, including device location and orientation, suture placement, and R-wave diagnostic sensing. Device programing was set to maximize the device's storage of ECG recordings of AF episodes.[20] Patients are being followed for a minimum of 18 and maximum of 30 months. Procedure and device related adverse events (AEs) were adjudicated by investigators as well as an independent Clinical Events Committee (CEC) composed of non-industry employed physicians. CEC adjudication was conducted via quorum, with at least three voting members of the CEC. Procedure-related AEs were defined as an adverse event that occurs due to any procedure related to the implantation or surgical modification of the system. Device related adverse events were defined as an adverse event that occurred due to the Reveal XT or Reveal LINQ device. AEs are considered serious if an event led to death or serious deterioration in the health of a subject (as indicated by a life-threatening illness or injury, permanent impairment of a body structure or a body function, in-patient hospitalization or prolonged hospitalization, or medical or surgical intervention to prevent permanent impairment to a body structure or a body function).

Statistics

Baseline characteristics are summarized using descriptive statistics. Continuous variables are presented as mean ± standard deviation. Categorical variables are presented as count and percentage. All analyses were completed using SAS version 9.4 (SAS Institute, Cary, NC).

EnSite NavXTM system (St. Jude Medical, St. Paul, USA) was used to construct the LA geometry and a voltage map of the antral region of the 4 PVs using a segmented cardiac CT template with/out fusion of the images.

Results

Demographics

Four hundred and fifty subjects were enrolled at 58 sites. Of these, 51 did not undergo a Reveal ICM insertion attempt due to subject withdrawal (n=28), not meeting inclusion/exclusion criteria (n=15), failure to maintain study compliance (n=3), AF detected prior to device insertion (n=3), device insertion not completed within 6 weeks of enrollment (n=1), and a change in primary care physician (n=1). Consequently, 399 subjects (US: n=306, Europe: n=93) underwent an insertion attempt. Of these, four subjects at a single site were excluded for sponsor determined reasons. Thus, 395 subjects at 57 sites were included in the present analysis [Figure. 1].

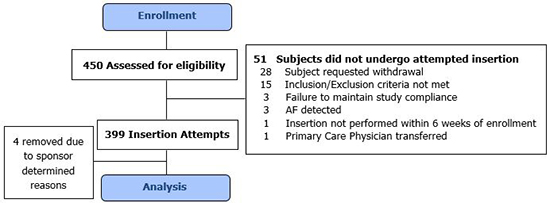

Figure 1. Subject flow diagram.



Sixty nine percent (69%) of subjects received the Reveal LINQ ICM and 31% of subjects received the predicate Reveal XT ICM device[Figure 2]. Baseline demographics and medical history are presented in [Table 1]. Subjects aged 38-92 years were enrolled, with a mean age of 72 ± 10 years. Seventy eight percent of the study population was aged ≥65 years. Males accounted for 52% of the study population. At least 100 patients have been enrolled and undergone an insertion attempt in each pre-defined CHADS2 subgroup (2, 3 and ≥4). Due to errors in scoring, one patient with a CHADS2 score of 1, and one patient with a CHADS2 score of 2 without additional protocol-specified AF risk factors underwent device insertion.

Figure 2. Image of Reveal XT (left) and LINQ (right) devices



Most subjects were suspected to have AF based on both symptoms and demographics (61%), followed by symptoms alone (24%). The most common symptoms were palpitations (51%), dizziness, lightheadedness or pre-syncope (36%), and shortness of breath (36%). Less common symptoms included fatigue/weakness (30%), rapid heartbeat (21%), chest pain (20%), syncope (20%) and edema (13%).

Table 1. Baseline patient characteristics.

Characteristic

All attempted insertions
(N = 395)

Device inserted/attempted



   Reveal LINQ

273 (69.1%)

   Reveal XT

122 (30.9%)

Demographics

Age, years



   Mean ± Standard Deviation

71.6 ± 9.8

Age category



   Under 65

88 (22.3%)

   65 to 75

131 (33.2%)

   75 and older

176 (44.6%)

Gender



   Male

207 (52.4%)

  ; Female

188 (47.6%)

Body mass index (BMI)





   Mean ± Standard Deviation

31.2 ± 6.5

CHADS2 score



   1

1 (0.3%)

   2

158 (40.0%)

   3

131 (33.2%)

  ; 4

105 (26.6%)

Reason AF is suspected



   Symptoms

93 (23.5%)

   Demographics

62 (15.7%)

   Both symptoms and demographics

240 (60.8%)

Symptoms within 3 months of consent



   None

38 (9.6%)

   Chest pain

80 (20.3%)

   Dizziness/lightheadedness/presyncope

142 (35.9%)

   Rapid heart beat

81 (20.5%)

   Shortness of breath

142 (35.9%)

   Edema

51 (12.9%)

   Fatigue/weakness

119 (30.1%)

   Palpitations

201 (50.9%)

   Syncope

77 (19.5%)

   Other

20 (5.1%)

Medical history



   Renal Dysfunction

64 (16.2%)

   Congestive Heart Failure

81 (20.5%)

   Coronary Artery Disease

234 (59.2%)

   Hypertension

370 (93.7%)

   COPD

76 (19.2%)

   Sleep apnea

104 (26.3%)

   Diabetes

249 (63.0%)

Vascular disease



   Cerebrovascular accident (stroke)

80 (20.3%)

   Transient Ischemic Attack

76 (19.2%)




Hypertension was present in 94% of subjects. Other common demographic characteristics included diabetes (63%), coronary artery disease (59%), sleep apnea (26%) and heart failure (21%). Twenty percent of patients had a previous stroke and 19% had a previous transient ischemic attack greater than 12 months prior to enrollment.

Insertion Procedure

Procedure data are presented in [Table 2]. The most common insertion location was between the 1st and 4th rib close to the sternum for both devices (Reveal XT: n=76 [62%]; LINQ: n=129 [47%]). Twenty five percent of Reveal XT (n=30) and 17% of LINQ devices (n=45) were placed between the 1st and 4th rib, but more lateral to the sternum. LINQ devices were also frequently placed inferior to the 4th rib close to the sternum (n=70 [26%]), whereas Reveal XT devices were not (n=6, 4.9%). The ICM was most frequently oriented vertically for the Reveal XT (n=67 [55%]), and at a 45 degree angle for Reveal LINQ (n=232 [85%]). The Reveal XT device was often sutured during the insertion (n=107, [88%]), whereas few LINQ devices were sutured (n=13 [5%]). Ninety-eight percent (n=385) of ICM devices were inserted with electrodes directed outwards, as recommended by the manufacturer, and R-wave diagnostic sensing was completed on 96% of ICMs.

Table 2. Insertion procedure.



LINQ

(N= 272 )

Reveal XT

(N= 122 )

All insertions

(N= 394 )

Device location







Between clavicle and 1st rib (close to sternum)

2 (0.7%)

2 (1.6%)

4 (1.0%)

Between clavicle and 1st rib

0 (0.0%)

4 (3.3%)

4 (1.0%)

Between 1st and 4th rib (close to sternum)

129 (47.4%)

76 (62.3%)

205 (52.0%)

Between 1st and 4th rib

45 (16.5%)

30 (24.6%)

75 (19.0%)

   Inferior to 4th rib (close to sternum)

70 (25.7%)

6 (4.9%)

76 (19.3%)

   Inferior to 4th rib

19 (7.0%)

4 (3.3%)

23 (5.8%)

   Other

7 (2.6%)

0 (0.0%)

7 (1.8%)

Device orientation







   Horizontal

7 (2.6%)

4 (3.3%)

11 (2.8%)

   Vertical

21 (7.7%)

67 (54.9%)

88 (22.3%)

   45 degrees

232 (85.3%)

42 (34.4%)

274 (69.5%)

   135 degrees

10 (3.7%)

3 (2.5%)

13 (3.3%)

   Other

2 (0.7%)

6 (4.9%)

8 (2.0%)

Device sutured during insertion

13 (4.8%)

107 (87.7%)

120 (30.5%)

Electrodes outward (as recommended)

263 (96.7%)

122 (100%)

385 (97.7%)

R-wave diagnostic sensing completed

259 (95.2%)

119 (97.5%)

378 (95.9%)




Safety

Procedure and device related AEs are displayed in [Table 3]. For subjects receiving the Reveal XT device, 4.1% (n=5) and 5.7% (n=7) experienced a procedure and device related AE, respectively. Procedure related AEs included impaired healing (including pruritus or erythema, n=2), insertion site infection (n=2), and insertion site pain/irritation (n=2). Device-related AEs associated with the Reveal XT ICM included insertion site infection (n=1), discomfort (n=1), and insertion site pain/irritation (n=5).

Table 3. Procedure and device related adverse events

Combined results

Reveal XT

(N=122)

Reveal LINQ

(N=272 + 1 attempt)

Total

Serious per CEC

Serious per investigator

Total

Serious per CEC

Serious per investigator

Device and/or procedure related

11 (10*, 8.2%)

7 (5.7%)

2 (1.6%)

9 (3.3%)

6 (2.2%)

4 (1.5%)

       Procedure related

6 (5*, 4.1%)

3 (2.5%)

1 (0.8%)

5 (1.8%)

4 (1.5%)

3 (1.1%)

       Device related

7 (5.7%)

6 (4.9%)

1 (0.8%)

7 (2.6%)

5 (1.8%)

3 (1.1%)

Individual results

Device dislocation/ device site erosion

Device and/or procedure related

0

0

0

4 (1.5%)

4 (1.5%)

3 (1.1%)

       Procedure related

0

0

0

3 (1.1%)

3 (1.1%)

2 (0.7%)

       Device related

0

0

0

4 (1.5%)

4 (1.5%)

3 (1.1%)

Impaired healing (including pruritus or erythema)

Device and/or procedure related

2 (1.6%)

0

0

2 (0.7%)

0

0

       Procedure related

2 (1.6%)

0

0

1 (0.4%)

0

0

       Device related

0

0

0

1 (0.4%)

0

0

Insertion site infection

Device and/or procedure related

2 (1.6%)

2 (1.6%)

1 (0.8%)

0

0

0

       Procedure related

2 (1.6%)

2 (1.6%)

1 (0.8%)

0

0

0

       Device related

1 (0.8%)

1 (0.8%)

0

0

0

0

Insertion site pain / irritation

Device and/or procedure related

6 (4.9%)

4 (3.3%)

0

1 (0.4%)

0

0

       Procedure related

2 (1.6%)

1 (0.8%)

0

0

0

0

       Device related

5 (4.1%)

4 (3.3%)

0

1 (0.4%)

0

0

Oversensing

Device and/or procedure related

0

0

0

1 (0.4%)

1 (0.4%)

0

       Procedure related

0

0

0

0

0

0

       Device related

0

0

0

1 (0.4%)

1 (0.4%)

0

Shock/ dyspnea

Device and/or procedure related

0

0

0

1 (0.4%)

1 (0.4%)

1 (0.4%)

       Procedure related

0

0

0

1 (0.4%)

1 (0.4%)

1 (0.4%)

       Device related

0

0

0

0

0

0

Discomfort

Device and/or procedure related

1 (0.8%)

1 (0.8%)

1 (0.8%)

0

0

0

       Procedure related

0

0

0

0

0

0

       Device related

1 (0.8%)

1 (0.8%)

1 (0.8%)

0

0

0


*One subject accounts for two different Reveal XT procedure related events. Neither was deemed serious by CEC or site.

Overall, the CEC classified three (2%) procedure related AEs and six (5%) device related AEs as serious for the Reveal XT device. Serious procedure related AEs included two insertion site infections that were resolved by device explant and one case of pain around the device at the insertion site. Device related AEs classified as serious by the CEC included four cases of pain around the device at the insertion site, one case of discomfort and one case of insertion site infection. All of these events resulted in device explant.

Subjects receiving the Reveal LINQ device had a lower rate of procedure or system related adverse events, with 1.8% (n=5) experiencing a procedure related AE and 2.6% (n=7) experiencing a device related AE. Procedure related AEs included device dislocation/site erosion (n=3), impaired healing (n=1), and shock/dyspnea (n=1). The patient who experienced shock/dyspnea had a reaction to antibiotic administration prior to device insertion (see below). Device related AEs observed with Reveal LINQ included device dislocation/site erosion (n=4), impaired healing (n=1), insertion site pain/irritation (n=1) and oversensing (n=1).

For Reveal LINQ, the CEC classified four (1%) procedure related AEs as serious. These included three situations in which the device migrated out of the incision pocket. In addition, one subject had an allergic reaction to antibiotic administration prior to device insertion. This subject was stabilized and transferred to the ICU, and did not receive a LINQ device. The CEC also classified five (2%) device related AEs as serious. These included four situations in which the device migrated out of the incision pocket. Additionally, one patient experienced poor device sensing. This was resolved by repositioning the device, which required an invasive procedure.

There was occasional disagreement between the CEC and investigators in terms of severity of AEs. CEC and investigator classifications are presented in Table 3. Investigators considered fewer events to be serious compared with the CEC.

Discussion

Considering the frequency of AF and the severity of its clinical sequelae, there is a clear need for rigorous AF screening programs, especially for patients at higher risk. Screening strategies should balance the cost and invasiveness of a diagnostic device with a population’s level of risk for AF. In a lower risk population where the consequences of missing even short AF episodes are lower, a simpler, less expensive test with a lower detection rate may be sufficient as an initial step. Such tests include blood pressure monitors with AF detection and hand-held ECG devices (including smart phones). While the benefit of these systems includes low cost and non-invasive nature, they are limited by their ability to provide only a snapshot into the overall frequency and burden of AF in an individual patient.

Wearable ECG systems and ICMs have been developed in order to facilitate continuous AF screening in higher risk populations. While wearable ECG devices have the advantage of being non-invasive, they are limited in the duration (1-4 weeks) of continuous monitoring afforded, and are susceptible to subject compliance challenges. Subcutaneous ICMs improve compliance by inhibiting removal/nonuse and provide continuous monitoring for up to three years.[21] However, the minimally invasive nature of these devices warrants their use in a higher risk patient population. AF detection by pacemakers and ICDs have provided proof of concept of AF detection with an implanted device, but they have done so only in patients with concomitant electrical disorders, which may or may not be reflective of event rates and significance in a broader population of patients.

Accordingly, a number of ongoing trials employ ICMs to screen for AF in patients without a previous history of this arrhythmia, but who are at higher risk for AF and subsequent stroke if AF is present. These include REVEAL AF, PREDATE AF (NCT01851902), ASSERT II (NCT01694394), and LOOP (NCT02036450). The REVEAL AF study is specifically assessing the value of ICM monitoring in a patient population suspected to be at high risk for AF based on a modified CHADS2 score. The baseline data from this study demonstrate that a) the study enrolled its target population and will be able to evaluate the efficacy of the envisioned screening strategy, b) there are patients at high risk for AF willing to undergo ICM monitoring, and c) ICMs are safe for use in this population, and are becoming safer with advancements in technology.

Subject demographics

To be clinically impactful, it is important that diagnosis be linked to clear recommendations for a meaningful change in therapy (e.g. initiation of OAC therapy for stroke prevention). In the current REVEAL AF study, a modified CHADS2 scoring system was used to guide patient enrollment. The CHADS2 and CHA2DS2-VASc scoring systems provide a framework for identifying patients that would benefit from OAC to decrease their risk of stroke due to AF. Of note, the risk factors for developing AF overlap heavily with the risk factors for stroke in the CHADS2 and CHA2DS2-VASc systems. Consequently, a high CHADS2 or CHA2DS2-VASc score might not only identify patients at high risk of stroke due to AF, but also those that are at high risk of developing AF. There have been a number of recent analyses that support this supposition.[22]-[27]

In REVEAL AF, subjects were required to have a CHADS2 score ≥ 3 or a CHADS2 score = 2 with at least one of the following additional AF risk factors documented: coronary artery disease, renal impairment, sleep apnea, or chronic obstructive pulmonary disease. Here we report that REVEAL AF was successful in enrolling patients in the originally defined target population. Each pre-defined CHADS2 subgroup (2, 3 and ≥4) was well represented (>100 subjects), and a reasonable prevalence of AF risk factors used to guide enrollment for subjects with a CHADS2 score of two was attained. Specifically, coronary artery disease, renal impairment, sleep apnea, and chronic obstructive pulmonary disease were all present in over 15% of the population. Of these risk factors, coronary artery disease was the most common, occurring in 59% of subjects. By achieving our target population, the REVEAL AF study will be able to determine the efficacy of the originally designed screening strategy. As such, when the follow up (minimum of 18 months to a maximum of 30 months) for the primary endpoint (AF detection) is complete in early 2017, a greater understanding will be attained of how predictive the risk factors specified above are for AF development. Importantly, these demographic characteristics reflect those reported for ischemic stroke populations in large epidemiological studies,[15], [28], [29] which further highlights the clinical importance of screening the REVEAL AF patient population for primary stroke prevention. In REVEAL AF, also planned are assessments of possible genetic and circulating biomarkers as predictors of AF and or associated adverse consequences. Moreover, if the frequency of AF detection is substantial (for example higher than 10-20%), there will be significant implications for screening of large segments of our older population as well as the need for larger phase 3 trials.

Patient acceptance

In addition to efficacy, patient acceptance is a key aspect of a successful screening paradigm. In the REVEAL AF study, we were able to meet our enrollment goal of 450 subjects. This indicates that there are patients believed to be at high risk for AF who are willing to participate in an ICM screening strategy. The higher prevalence of subjects enrolled with symptoms compared to those without may reflect greater patient acceptance in this cohort. The study did have enrollment challenges, evident by a 2.5 year enrollment period for 450 subjects across 58 centers. While this may be due in part to inclusion/exclusion requirements of the study, the 2.5 year timeframe likely reflects some subject concern around engaging in an ICM screening strategy for AF detection. Additionally, 6% of consented subjects did not receive an ICM due to subject withdrawal. Patient acceptance will likely evolve with future clinical evidence and technological advances that increase device safety and/or reduce patient burden. This is supported by the observation that over twice as many subjects were inserted with the newer miniaturized Reveal LINQ ICM than the predicate XT device in this study, despite the LINQ ICM only being commercially available during the second half of the enrollment period.

Safety of ICM Monitoring in Patients at High Risk for AF

In order for adoption of ICM’s as a method to detect AF in a high-risk population, the overall safety of the device and procedure must be demonstrated. While the safety of predicate ICM devices have been characterized in different patient populations,[30]-[36] prior investigations have not specifically evaluated safety in individuals suspected to be at high risk for AF outside the context of post-stroke cardiac monitoring. Moreover, limited data exist on the safety of the new miniaturized Reveal LINQ ICM, as this device has only been commercially available since 2014.

In REVEAL AF, we observed a low rate of serious procedure and/or device related adverse events (3%), which primarily included a low reported incidence of device dislocation/site erosion, insertion site infection, and insertion site pain/irritation. The miniaturized Reveal LINQ ICM had an improved safety profile compared with the predicate Reveal XT device. Specifically, in patients who received the Reveal XT, serious procedure related adverse events occurred in 2.5% of patients, and serious device related adverse events occurred in 4.9%. In the Reveal LINQ subgroup, procedure-related serious AEs occurred in 1.5% of patients, and serious device related AEs occurred in 1.8%. Importantly, these rates are in line which those recently reported for the Reveal LINQ device (≤2%) in both clinical trial[37], [38] and real world settings.[37] Overall, these data add to the mounting evidence supporting the safety of ICM insertion in broad patient populations, and highlights that ICM safety is improving with advancements in technology. Importantly, if a clinically meaningful yield of AF detection is observed in REVEAL AF and other ongoing trials, these safety data will support clinical adoption of ICM-based screening programs.

Conclusion

AF remains an important cause for morbidity and mortality, particularly by increasing the risk of ischemic stroke. In higher risk populations, where therapy may be significantly altered, more intensive screening tools that provide a longer monitoring period may be employed. Data from REVEAL AF demonstrate a portion of patients believed to be at high risk for AF are willing to undergo ICM screening, and ICM devices are safe for use in this population, and becoming safer with evolving technology. If successful, REVEAL AF and other ongoing studies may have a substantial impact on informing clinical care for patients at high risk for AF.

Conflict Of Interests

None.

Disclosures

Drs. Reiffel, Gersh, Kowey, Wachter, Halperin and Verma are consultants for, and receive modest honoraria from Medtronic. Rachelle Kaplon and Erika Pouliot are employed by and stock owners of, Medtronic.
